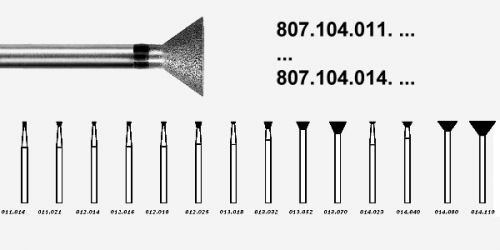

Обратноконусные 807.104.011..-807.104.014
| Обозначение | Диаметр | Угол конуса | Вид исполнения |
| 807.104.011.014 | Ø1,4х2 | 11° | 504; 514; 524; 534(2) |
| 807.104.011.021 | Ø2,1х1,9 | 32° | 504; 514; 524; 534(2) |
| 807.104.012.014 | Ø1,4х1,5 | 15° | 504; 514; 524; 534(2) |
| 807.104.012.016 | Ø1,6х1,5 | 22° | 504; 514; 524; 534(2) |
| 807.104.012.018 | Ø1,8х1,5 | 30° | 504; 514; 524; 534(2) |
| 807.104.012.025 | Ø2,5х2,5 | 27° | 504; 514; 524; 534; 544(4) |
| 807.104.013.018 | Ø1,8х0,7 | 60° | 504; 514; 524; 534(2) |
| 807.104.013.032 | Ø3,2х2,8 | 32° | 504; 514; 524; 534 |
| 807.104.013.052 | Ø5,2х3,2 | 48° | 504; 514; 524; 534 |
| 807.104.013.070 | Ø7,0х5,0 | 50° | 504; 514; 524; 534; 544 |
| 807.104.014.023 | Ø2,3х0,8 | 78° | 504; 514; 524; 534(2) |
| 807.104.014.040 | Ø4,0х2,0 | 62° | 504; 514; 524; 534 |

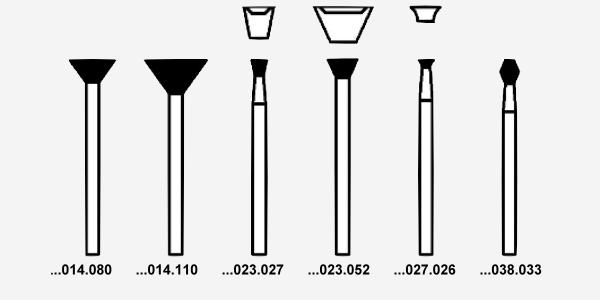

| 807.104.014.080 | Ø8,0х4,0 | 70° | 504; 514; 524; 534; 544 |
| 807.104.014.110 | Ø11,0х6,0 | 71° | 504; 514; 524; 534; 544 |
| 807.104.014.110* | Ø11,0х2,5 | 120° | 504; 514; 524; 534; 544 |
| 807.104.023.027 | Ø2,7х2,8 | 24° | 504; 514; 524; 534(2) |
| 807.104.023.052 | Ø5,2х3,2 | 48° | 504; 514; 524; 534(3) |
| 807.104.027.026 | Ø2,6х1,7(r1,7) | 504; 514; 524; 534(2) | |
| 807.104.038.033 | Ø3,3х4,2 | 504; 514; 524; 534,544 | |
|
| |||
