МСК 14.Г
МСК 14.Г

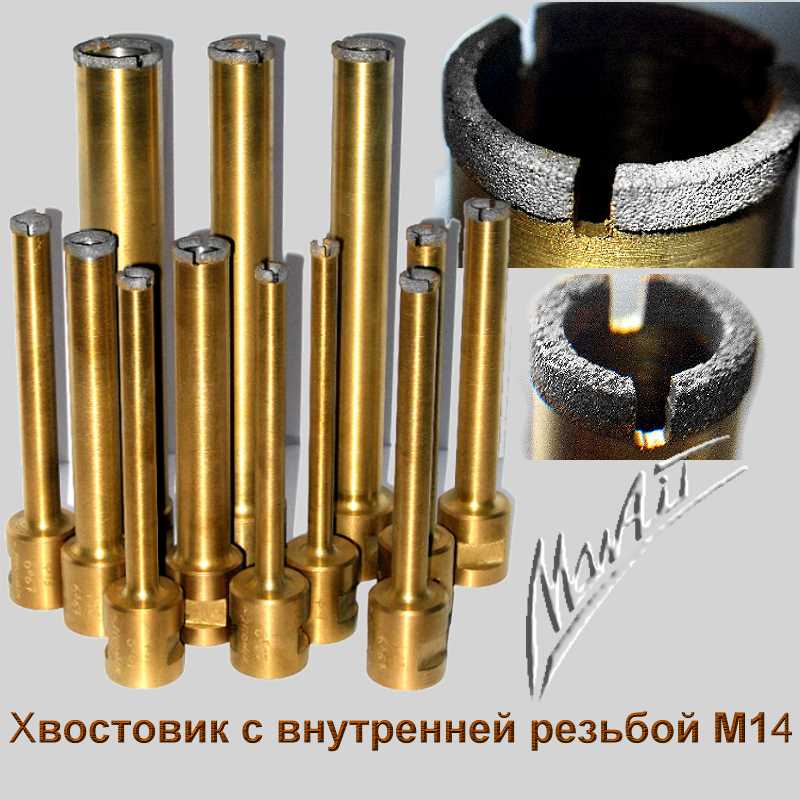

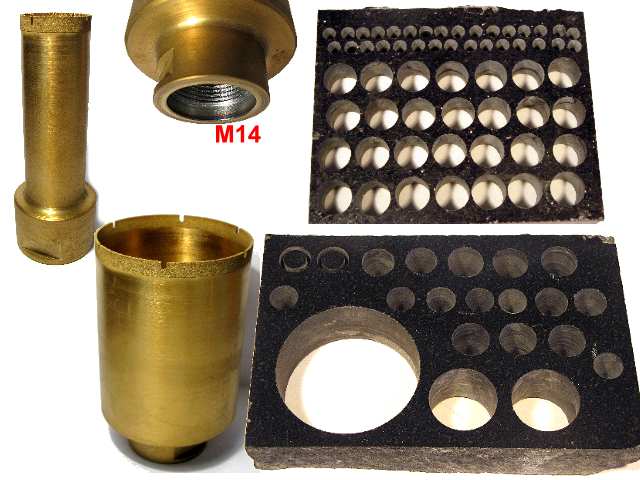

Алмазные кольцевые свёрла (МСК 14.Г) предназначены
для сверления отверстий в граните
******

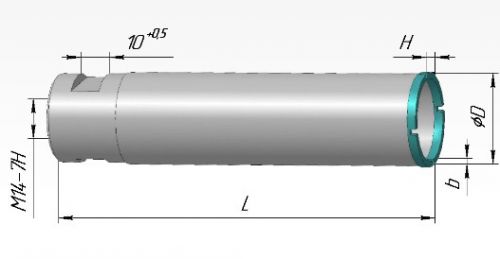

| Обозначение (применять при заказе) | ØD диаметр коронки, мм | H высота коронки, мм | b толщина коронки, мм | Пазы на коронке кол./ширина паза(мм) | L длина сверла, мм |
| МСК14.Г-5 | 5,0 | 3,0 | 1,6 | 2/1 | 102,0 |
| МСК14.Г-6 | 6,0 | 3,0 | 2,0 | 2/1 | 82,0(88,0) |
| МСК14.Г-6* | 6,0 | 3,0 | 2,0 | 2/1 | 102,0 |
| МСК14.Г-7 | 7,0 | 3,0 | 2,5 | 2/1 | 102,0 |
| МСК14.Г-8 | 8,0 | 3,0 | 1,9 | 2/1 | 82,0 |
| МСК14.Г-8* | 8,0 | 3,0 | 2,0 | 2/1 | 102,0 |
| МСК14.Г-9 | 9,0 | 3,0 | 2,0 | 2/1 | 133,0 |
| МСК14.Г-10* | 10,0 | 3,0 | 2,0 | 2/1 | 133,0 |
| МСК14.Г-11 | 11,0 | 3,0 | 2,0 | 2/1 | 133,0 |
| МСК14.Г-12 | 12,0 | 3,0 | 2,0 | 2/1 | 133,0 |
| МСК14.Г-13 | 13,0 | 3,0 | 2,0 | 2/1 | 133,0 |
| МСК14.Г-14 | 14,0 | 3,0 | 2,0 | 2/2 | 133,0 |
| МСК14.Г-15 | 15,0 | 3,0 | 2,0 | 2/2 | 133,0 |
| МСК14.Г-16 | 16,0 | 3,0 | 2,0 | 2/2 | 133,0 |
| МСК14.Г-18 | 18,0 | 3,0 | 2,0 | 2/2 | 133,0 |
| МСК14.Г-20* | 20,0 | 3,0 | 2,0 | 2/2 | 182,0 |
| МСК14.Г-21* | 21,0 | 3,0 | 2,0 | 2/2 | 182,0 |
| МСК14.Г-22* | 22,0 | 3,0 | 2,0 | 2/2 | 182,0 |
| МСК14.Г-24* | 24,0 | 3,0 | 2,0 | 2/2 | 182,0 |
| МСК14.Г-25* | 25,0 | 3,0 | 2,0 | 3/2 | 182,0 |
| МСК14.Г-26* | 26,0 | 3,0 | 2,0 | 3/2 | 182,0 |
| МСК14.Г-28* | 28,0 | 3,0 | 2,0 | 4/2 | 182,0 |
| МСК14.Г-30* | 30,0 | 3,0 | 2,0 | 4/2 | 182,0 |
| МСК14.Г-32* | 32,0 | 3,0 | 2,0 | 4/2 | 182,0 |
| МСК14.Г-32 | 32,0 | 3,0 | 2,0 | 4/2 | 133,0 |
| МСК14.Г-33 | 33,0 | 3,0 | 2,0 | 4/2 | 133,0 |
| МСК14.Г-34 | 34,0 | 3,0 | 2,0 | 4/2 | 133,0 |
| МСК14.Г-35* | 35,0 | 3,0 | 2,0 | 4/2 | 182,0 |
| МСК14.Г-36 | 36,0 | 3,0 | 2,0 | 5/2 | 133,0 |
| МСК14.Г-40 | 40,0 | 3,0 | 2,0 | 5/2 | 133,0 |
| МСК14.Г-42* | 42,0 | 3,0 | 2,0 | 5/2 | 182,0 |
| МСК14.Г-45* | 45,0 | 3,0 | 2,0 | 6/2 | 182,0 |
| МСК14.Г-50 | 50,0 | 3,0 | 2,0 | 6/2 | 133,0 |
| МСК14.Г-55* | 55,0 | 3,0 | 2,0 | 7/2 | 182,0 |
| МСК14.Г-60 | 60,0 | 3,0 | 2,0 | 8/2 | 133,0 |
| МСК14.Г-65 | 65,0 | 3,0 | 2,0 | 8/2 | 133,0 |
| МСК14.Г-70 | 70,0 | 3,0 | 2,0 | 8/2 | 133,0 |
